●低噪音:采用螺旋齒輪設計，實現了減速機的順暢、安靜運轉。
●高精度:背隙可達3弧分以內，定位精確。
●高剛性、高扭矩:輸出軸采用大尺寸，大跨距式雙支撐軸承設計，大大提高了減速機剛性和扭矩。
●高效率:單段可達95%以上，雙段可達92%以上。
●免維護:油脂磨耗低，可終身潤滑。
●密封效果好:潤滑油脂具有高粘度、不易分離的特性，并采用IP65防護等級，確保無潤滑油脂泄漏。
●自由安裝可任意安裝機。
●適用性廣:適用于任意型式伺服電機。

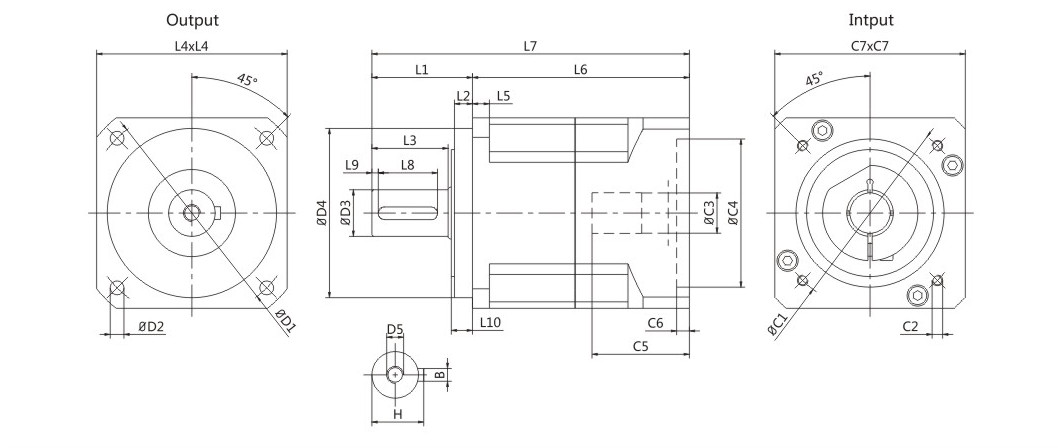

TAB040-01
| TAB040-01 | ||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※1 | ※2 | ※3 | ※4 | ※5 | ※6 | ※7 | B | H |
| Type Ⅰ | 50 | 3.5 | 13 | 35 | M4 | 26 | 5 | 20 | 45 | 5 | 63 | 89 | 16 | 0 | 6 | 46 | M4 | 8 | 30 | 28 | 5 | 45 | 5 | 15 |
TAB040-02
| TAB040-02 | ||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※1 | ※2 | ※3 | ※4 | ※5 | ※6 | ※7 | B | H |
| Type Ⅰ | 50 | 3.5 | 13 | 35 | M4 | 26 | 5 | 20 | 45 | 5 | 82 | 108 | 16 | 0 | 6 | 46 | M4 | 8 | 30 | 28 | 5 | 45 | 5 | 15 |
| TAB040 | ||||||||||||||||
| 速比 | Ratio | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 | |
| 額定輸出扭矩 T2N | Nominal Output Tourque T2N | Nm | 19 | 16 | 16 | 15 | 14 | 20 | 19 | 22 | 20 | 19 | 17 | 22 | 19 | 14 |
| 急停扭矩 T2NOT | Emergency Stop Torque T2NOT | Nm | 1.8倍額定輸出扭矩1.8times of Nominal Output Torque | |||||||||||||
| 額定輸入轉速n1N | Nominal Input Speed n1N | rpm | 3000 | |||||||||||||
| 最大輸入轉速 n1B | Max. Input Speed n1B | rpm | 6000 | |||||||||||||
| 扭轉剛性 | Torsional Rigidity | Nm/arcmin | 3 | |||||||||||||
| 容許徑向力 F2rb | Max. Radial Load F2rb | N | 380 | |||||||||||||
| 容許軸向力 F2ab | Max. Axial Load F2ab | N | 190 | |||||||||||||
| 只用壽命 | Service Life | hr | 20000（連續運轉壽命減半①） | |||||||||||||
| 噪音值 | Noise | dB | ≤60（輸入轉速=3000rpm、空載、距離1M②） | |||||||||||||
| 使用溫度 | Operating Temp | ℃ | -10 ~ +90 | |||||||||||||
| 防護等級 | Degree of Reducer Protection | IP65 | ||||||||||||||
| 潤滑 | Lubrication | 合成潤滑油脂（終身潤滑）Synthrtic lubrication oils | ||||||||||||||
| 轉動慣量 J1 | Mass moments of Inertia J1 | Kg·cm2 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| 精密背隙P1 | Precision Backlash P1 | arcmin | ≤3 | ≤5 | ||||||||||||
| 標準背隙P2 | Standard Backlash P2 | arcmin | ≤7 | ≤8 | ||||||||||||
| 效率 η | Efficiency η | % | ≥97% | ≥92% | ||||||||||||
① Half-life under continuous operation mode.
② Raducer under no-load mode, input speed is 3000, the vale which Noise Measurement machine get at one mater away postion.
TAB060-01
| TAB060-01 | ||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※1 | ※2 | ※3 | ※4 | ※5 | ※6 | ※7 | B | H |
| Type Ⅰ | 70 | 5.5 | 16 | 50 | M5 | 37 | 7 | 28.5 | 60 | 8 | 76 | 113 | 20 | 3 | 7.5 | 70 | M4 | 14 | 50 | 32.5 | 6 | 60 | 5 | 18 |
| Type Ⅱ | 70 | 5.5 | 16 | 50 | M5 | 37 | 7 | 28.5 | 60 | 8 | 92.5 | 129.5 | 20 | 3 | 7.5 | 90 | M5 | 19 | 70 | 43 | 6 | 80 | 5 | 18 |
TAB060-02
| TAB060-02 | ||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※1 | ※2 | ※3 | ※4 | ※5 | ※6 | ※7 | B | H |
| Type Ⅰ | 70 | 5.5 | 16 | 50 | M5 | 37 | 7 | 28.5 | 60 | 8 | 96 | 133 | 20 | 3 | 7.5 | 70 | M4 | 14 | 50 | 32.5 | 6 | 60 | 5 | 18 |
| Type Ⅱ | 70 | 5.5 | 16 | 50 | M5 | 37 | 7 | 28.5 | 60 | 8 | 96 | 133 | 20 | 3 | 7.5 | 70 | M4 | 11 | 50 | 32.5 | 6 | 60 | 5 | 18 |
| TAB060 | ||||||||||||||||
| 速比 | Ratio | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 | |
| 額定輸出扭矩 T2N | Nominal Output Tourque T2N | Nm | 55 | 50 | 60 | 50 | 40 | 55 | 50 | 60 | 55 | 50 | 50 | 60 | 50 | 40 |
| 急停扭矩 T2NOT | Emergency Stop Torque T2NOT | Nm | 2.5倍額定輸出扭矩 2.5times of Nominal Output Torque | |||||||||||||
| 額定輸入轉速n1N | Nominal Input Speed n1N | rpm | 5000 | |||||||||||||
| 最大輸入轉速 n1B | Max. Input Speed n1B | rpm | 10000 | |||||||||||||
| 扭轉剛性 | Torsional Rigidity | Nm/arcmin | 7 | |||||||||||||
| 容許徑向力 F2rb | Max. Radial Load F2rb | N | 1530 | |||||||||||||
| 容許軸向力 F2ab | Max. Axial Load F2ab | N | 630 | |||||||||||||
| 只用壽命 | Service Life | hr | 20000（連續運轉壽命減半①） | |||||||||||||
| 噪音值 | Noise | dB | ≤60（輸入轉速=3000rpm、空載、距離1M②） | |||||||||||||
| 使用溫度 | Operating Temp | ℃ | -10 ~ +90 | |||||||||||||
| 防護等級 | Degree of Reducer Protection | IP65 | ||||||||||||||
| 潤滑 | Lubrication | 合成潤滑油脂（終身潤滑）Synthrtic lubrication oils | ||||||||||||||
| 轉動慣量 J1 | Mass moments of Inertia J1 | Kg·cm2 | 0.16 | 0.14 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 |
| 精密背隙P1 | Precision Backlash P1 | arcmin | ≤3 | ≤5 | ||||||||||||
| 標準背隙P2 | Standard Backlash P2 | arcmin | ≤7 | ≤8 | ||||||||||||
| 效率 η | Efficiency η | % | ≥95% | ≥92% | ||||||||||||
① Half-life under continuous operation mode.
② Raducer under no-load mode, input speed is 3000, the vale which Noise Measurement machine get at one mater away postion.
TAB090-01
| TAB090-01 | |||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | ※C1 | ※C2 | ※C3 | ※C4 | ※C5 | ※C6 | ※C7 | B | H |
| Type Ⅰ | 100 | 6.5 | 22 | 80 | M8 | 47.5 | 10 | 36 | 90 | 8 | 102.5 | 150 | 30 | 3 | 90 | M5 | 19 | 70 | 46 | 6 | 90 | 6 | 24.5 |
| Type Ⅱ | 100 | 6.5 | 22 | 80 | M8 | 47.5 | 10 | 36 | 90 | 8 | 116.5 | 164 | 30 | 3 | 145 | M8 | 19 | 110 | 60 | 10 | 130 | 6 | 24.5 |
| Type Ⅲ | 100 | 6.5 | 22 | 80 | M8 | 47.5 | 10 | 36 | 90 | 8 | 116.5 | 164 | 30 | 3 | 145 | M8 | 22 | 110 | 60 | 10 | 130 | 6 | 24.5 |
| Type Ⅳ | 100 | 6.5 | 22 | 80 | M8 | 47.5 | 10 | 36 | 90 | 8 | 116.5 | 164 | 30 | 3 | 145 | M8 | 24 | 110 | 60 | 10 | 130 | 6 | 24.5 |
TAB090-02
| TAB090-02 | |||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | ※C1 | ※C2 | ※C3 | ※C4 | ※C5 | ※C6 | ※C7 | B | H |
| Type Ⅰ | 100 | 6.5 | 22 | 80 | M8 | 47.5 | 10 | 36 | 90 | 8 | 135.5 | 183 | 30 | 3 | 90 | M5 | 19 | 70 | 46 | 6 | 90 | 6 | 24.5 |
| Type Ⅱ | 10 | 6.5 | 22 | 80 | M8 | 47.5 | 10 | 36 | 90 | 8 | 118.5 | 166 | 30 | 3 | 70 | M4 | 14 | 50 | 32.5 | 6 | 60 | 6 | 24.5 |
| TAB090 | ||||||||||||||||
| 速比 | Ratio | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 | |
| 額定輸出扭矩 T2N | Nominal Output Tourque T2N | Nm | 130 | 140 | 160 | 140 | 100 | 130 | 140 | 160 | 150 | 140 | 140 | 160 | 140 | 100 |
| 急停扭矩 T2NOT | Emergency Stop Torque T2NOT | Nm | 2.5倍額定輸出扭矩 2.5times of Nominal Output Torque | |||||||||||||
| 額定輸入轉速n1N | Nominal Input Speed n1N | rpm | 4000 | |||||||||||||
| 最大輸入轉速 n1B | Max. Input Speed n1B | rpm | 8000 | |||||||||||||
| 扭轉剛性 | Torsional Rigidity | Nm/arcmin | 14 | |||||||||||||
| 容許徑向力 F2rb | Max. Radial Load F2rb | N | 3250 | |||||||||||||
| 容許軸向力 F2ab | Max. Axial Load F2ab | N | 1300 | |||||||||||||
| 只用壽命 | Service Life | hr | 20000（連續運轉壽命減半①） | |||||||||||||
| 噪音值 | Noise | dB | ≤60（輸入轉速=3000rpm、空載、距離1M②） | |||||||||||||
| 使用溫度 | Operating Temp | ℃ | -10 ~ +90 | |||||||||||||
| 防護等級 | Degree of Reducer Protection | IP65 | ||||||||||||||
| 潤滑 | Lubrication | 合成潤滑油脂（終身潤滑）Synthrtic lubrication oils | ||||||||||||||
| 轉動慣量 J1 | Mass moments of Inertia J1 | Kg·cm2 | 0.61 | 0.48 | 0.47 | 0.45 | 0.44 | 0.47 | 0.47 | 0.47 | 0.44 | 0.45 | 0.44 | 0.44 | 0.13 | 0.13 |
| 精密背隙P1 | Precision Backlash P1 | arcmin | ≤3 | ≤5 | ||||||||||||
| 標準背隙P2 | Standard Backlash P2 | arcmin | ≤5 | ≤8 | ||||||||||||
| 效率 η | Efficiency η | % | ≥95% | ≥92% | ||||||||||||
① Half-life under continuous operation mode.
② Raducer under no-load mode, input speed is 3000, the vale which Noise Measurement machine get at one mater away postion.
TAB120-01
| TAB120-01 | ||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※1 | ※2 | ※3 | ※4 | ※5 | ※6 | ※7 | B | H |
| Type Ⅰ | 130 | 9 | 32 | 110 | M12 | 65 | 12 | 49 | 115 | 10 | 136 | 201 | 40 | 5 | 14 | 145 | M8 | 22 | 110 | 62.5 | 8 | 130 | 10 | 35 |
| Type Ⅱ | 130 | 9 | 32 | 110 | M12 | 65 | 12 | 49 | 115 | 10 | 136 | 201 | 40 | 5 | 14 | 145 | M8 | 24 | 110 | 62.5 | 8 | 130 | 10 | 35 |
TAB120-02
| TAB120-02 | ||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※1 | ※2 | ※3 | ※4 | ※5 | ※6 | ※7 | B | H |
| Type Ⅰ | 130 | 9 | 32 | 110 | M12 | 65 | 12 | 49 | 115 | 10 | 173 | 238 | 40 | 5 | 14 | 145 | M8 | 22 | 110 | 62.5 | 8 | 130 | 10 | 35 |
| Type Ⅱ | 130 | 9 | 32 | 110 | M12 | 65 | 12 | 49 | 115 | 10 | 173 | 238 | 40 | 5 | 14 | 145 | M8 | 24 | 110 | 62.5 | 8 | 130 | 10 | 35 |
| Type Ⅲ | 130 | 9 | 32 | 110 | M12 | 65 | 12 | 49 | 115 | 10 | 154.5 | 219.5 | 40 | 5 | 14 | 90 | M8 | 19 | 70 | 47.5 | 6 | 130 | 10 | 35 |
| TAB120 | ||||||||||||||||
| 速比 | Ratio | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 | |
| 額定輸出扭矩 T2N | Nominal Output Tourque T2N | Nm | 208 | 290 | 330 | 300 | 230 | 208 | 290 | 330 | 310 | 300 | 290 | 330 | 300 | 230 |
| 急停扭矩 T2NOT | Emergency Stop Torque T2NOT | Nm | 2.5倍額定輸出扭矩 2.5times of Nominal Output Torque | |||||||||||||
| 額定輸入轉速n1N | Nominal Input Speed n1N | rpm | 4000 | |||||||||||||
| 最大輸入轉速 n1B | Max. Input Speed n1B | rpm | 8000 | |||||||||||||
| 扭轉剛性 | Torsional Rigidity | Nm/arcmin | 25 | |||||||||||||
| 容許徑向力 F2rb | Max. Radial Load F2rb | N | 6700 | |||||||||||||
| 容許軸向力 F2ab | Max. Axial Load F2ab | N | 3000 | |||||||||||||
| 只用壽命 | Service Life | hr | 20000（連續運轉壽命減半①） | |||||||||||||
| 噪音值 | Noise | dB | ≤60（輸入轉速=3000rpm、空載、距離1M②） | |||||||||||||
| 使用溫度 | Operating Temp | ℃ | -10 ~ +90 | |||||||||||||
| 防護等級 | Degree of Reducer Protection | IP65 | ||||||||||||||
| 潤滑 | Lubrication | 合成潤滑油脂（終身潤滑）Synthrtic lubrication oils | ||||||||||||||
| 轉動慣量 J1 | Mass moments of Inertia J1 | Kg·cm2 | 3.25 | 2.74 | 2.71 | 2.62 | 2.57 | 2.71 | 2.71 | 2.71 | 2.57 | 2.62 | 2.57 | 2.57 | 0.44 | 0.44 |
| 精密背隙P1 | Precision Backlash P1 | arcmin | ≤3 | ≤5 | ||||||||||||
| 標準背隙P2 | Standard Backlash P2 | arcmin | ≤5 | ≤8 | ||||||||||||
| 效率 η | Efficiency η | % | ≥95% | ≥92% | ||||||||||||
① Half-life under continuous operation mode.
② Raducer under no-load mode, input speed is 3000, the vale which Noise Measurement machine get at one mater away postion.
TAB140-01
| TAB140-01 | ||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※1 | ※2 | ※3 | ※4 | ※5 | ※6 | ※7 | B | H |
| Type Ⅰ | 165 | 11 | 40 | 130 | M16 | 97 | 12 | 82 | 140 | 12 | 162 | 259 | 65 | 5 | 13.5 | 200 | M12 | 35 | 114.3 | 81.5 | 8 | 180 | 12 | 43 |
TAB140-02
| TAB140-02 | ||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※1 | ※2 | ※3 | ※4 | ※5 | ※6 | ※7 | B | H |
| Type Ⅰ | 165 | 11 | 40 | 130 | M16 | 97 | 12 | 82 | 140 | 12 | 203.5 | 300.5 | 65 | 5 | 13.5 | 200 | M12 | 35 | 114.3 | 81.5 | 8 | 180 | 12 | 43 |
| Type Ⅱ | 165 | 11 | 40 | 130 | M16 | 97 | 12 | 82 | 140 | 12 | 195 | 293 | 65 | 5 | 13.5 | 145 | M8 | 24 | 110 | 74 | 8 | 180 | 12 | 43 |
| Type Ⅲ | 165 | 11 | 40 | 130 | M16 | 97 | 12 | 82 | 140 | 12 | 195 | 293 | 65 | 5 | 13.5 | 145 | M8 | 22 | 110 | 74 | 8 | 180 | 12 | 43 |
| TAB140 | ||||||||||||||||
| 速比 | Ratio | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 | |
| 額定輸出扭矩 T2N | Nominal Output Tourque T2N | Nm | 342 | 542 | 650 | 550 | 450 | 342 | 542 | 650 | 600 | 550 | 542 | 650 | 550 | 450 |
| 急停扭矩 T2NOT | Emergency Stop Torque T2NOT | Nm | 2.5倍額定輸出扭矩 2.5times of Nominal Output Torque | |||||||||||||
| 額定輸入轉速n1N | Nominal Input Speed n1N | rpm | 3000 | |||||||||||||
| 最大輸入轉速 n1B | Max. Input Speed n1B | rpm | 6000 | |||||||||||||
| 扭轉剛性 | Torsional Rigidity | Nm/arcmin | 50 | |||||||||||||
| 容許徑向力 F2rb | Max. Radial Load F2rb | N | 9400 | |||||||||||||
| 容許軸向力 F2ab | Max. Axial Load F2ab | N | 4700 | |||||||||||||
| 只用壽命 | Service Life | hr | 20000（連續運轉壽命減半①） | |||||||||||||
| 噪音值 | Noise | dB | ≤60（輸入轉速=3000rpm、空載、距離1M②） | |||||||||||||
| 使用溫度 | Operating Temp | ℃ | -10 ~ +90 | |||||||||||||
| 防護等級 | Degree of Reducer Protection | IP65 | ||||||||||||||
| 潤滑 | Lubrication | 合成潤滑油脂（終身潤滑）Synthrtic lubrication oils | ||||||||||||||
| 轉動慣量 J1 | Mass moments of Inertia J1 | Kg·cm2 | 9.21 | 7.54 | 7.42 | 7.14 | 7.03 | 7.42 | 7.42 | 7.42 | 7.03 | 7.14 | 7.03 | 7.03 | 2.57 | 2.57 |
| 精密背隙P1 | Precision Backlash P1 | arcmin | ≤3 | ≤5 | ||||||||||||
| 標準背隙P2 | Standard Backlash P2 | arcmin | ≤5 | ≤8 | ||||||||||||
| 效率 η | Efficiency η | % | ≥95% | ≥92% | ||||||||||||
① Half-life under continuous operation mode.
② Raducer under no-load mode, input speed is 3000, the vale which Noise Measurement machine get at one mater away postion.
TAB180-01
| TAB180-01 | |||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | ※1 | ※2 | ※3 | ※4 | ※5 | ※6 | ※7 | B | H |
| Type Ⅰ | 215 | 13.5 | 55 | 160 | M20 | 105 | 20 | 82 | 180 | 15 | 176.5 | 281.5 | 70 | 6 | 200 | M12 | 42 | 114.3 | 82.5 | 10 | 180 | 16 | 59 |
TAB180-02
| TAB180-02 | |||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | ※1 | ※2 | ※3 | ※4 | ※5 | ※6 | ※7 | B | H |
| Type Ⅰ | 215 | 13.5 | 55 | 160 | M20 | 105 | 20 | 82 | 180 | 15 | 228.5 | 333.5 | 70 | 6 | 200 | M12 | 42 | 114.3 | 82.5 | 10 | 180 | 16 | 59 |
| Type Ⅱ | 215 | 13.5 | 55 | 160 | M20 | 105 | 20 | 82 | 180 | 15 | 228.5 | 333.5 | 70 | 6 | 200 | M12 | 35 | 114.3 | 82.5 | 10 | 180 | 16 | 59 |
| TAB180 | ||||||||||||||||
| 速比 | Ratio | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 | |
| 額定輸出扭矩 T2N | Nominal Output Tourque T2N | Nm | 588 | 1050 | 1200 | 1100 | 900 | 588 | 1050 | 1200 | 1100 | 1100 | 1050 | 1200 | 1100 | 900 |
| 急停扭矩 T2NOT | Emergency Stop Torque T2NOT | Nm | 2.5倍額定輸出扭矩 2.5times of Nominal Output Torque | |||||||||||||
| 額定輸入轉速n1N | Nominal Input Speed n1N | rpm | 3000 | |||||||||||||
| 最大輸入轉速 n1B | Max. Input Speed n1B | rpm | 6000 | |||||||||||||
| 扭轉剛性 | Torsional Rigidity | Nm/arcmin | 145 | |||||||||||||
| 容許徑向力 F2rb | Max. Radial Load F2rb | N | 14500 | |||||||||||||
| 容許軸向力 F2ab | Max. Axial Load F2ab | N | 7250 | |||||||||||||
| 只用壽命 | Service Life | hr | 20000（連續運轉壽命減半①） | |||||||||||||
| 噪音值 | Noise | dB | ≤70（輸入轉速=3000rpm、空載、距離1M②） | |||||||||||||
| 使用溫度 | Operating Temp | ℃ | -10 ~ +90 | |||||||||||||
| 防護等級 | Degree of Reducer Protection | IP65 | ||||||||||||||
| 潤滑 | Lubrication | 合成潤滑油脂（終身潤滑）Synthrtic lubrication oils | ||||||||||||||
| 轉動慣量 J1 | Mass moments of Inertia J1 | Kg·cm2 | 29 | 23.7 | 23.3 | 22.5 | 22.5 | 23.3 | 23.3 | 23.3 | 22.5 | 22.5 | 22.5 | 22.5 | 7.03 | 7.03 |
| 精密背隙P1 | Precision Backlash P1 | arcmin | ≤3 | ≤5 | ||||||||||||
| 標準背隙P2 | Standard Backlash P2 | arcmin | ≤5 | ≤8 | ||||||||||||
| 效率 η | Efficiency η | % | ≥95% | ≥92% | ||||||||||||
① Half-life under continuous operation mode.
② Raducer under no-load mode, input speed is 3000, the vale which Noise Measurement machine get at one mater away postion.
